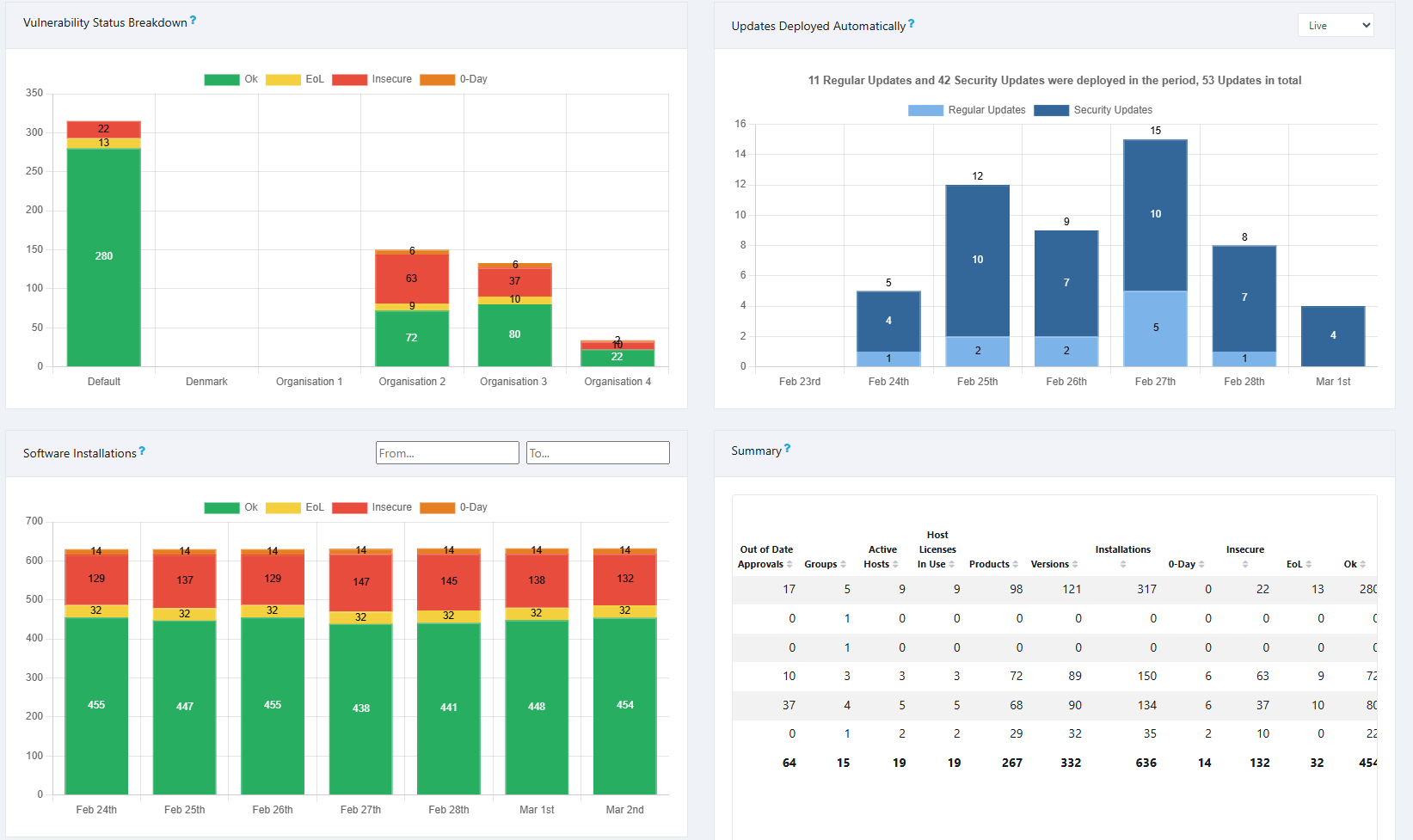

4.12.2 System Dashboard
The System Dashboard provides an overview of activity and status across all sites within the platform.
Just like the SecTeer VulnDetect Dashboard displays information for a specific site, the System Dashboard presents aggregated data at the system level.
This allows system administrators to monitor overall platform status, vulnerability distribution, and update activity across multiple sites.

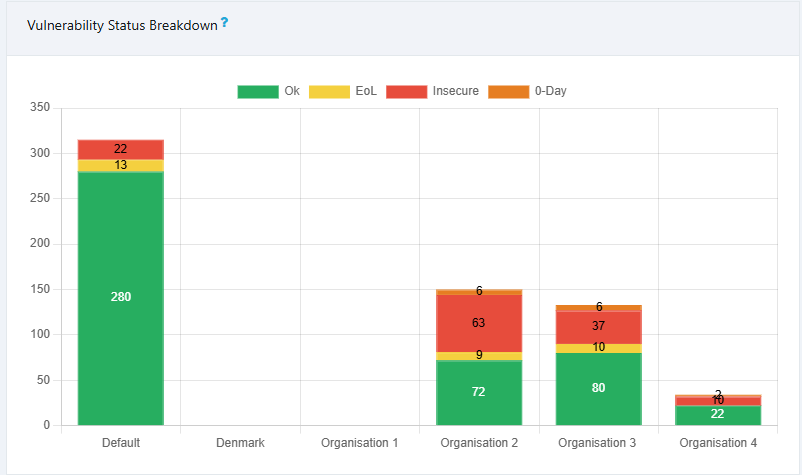

Vulnerability Status Breakdown
The Vulnerability Status Breakdown shows the number of applications, broken down by category and which site the application resides.
Every application is counted once.
- If an application falls into two more categories, it’ll be listed in the most severe.

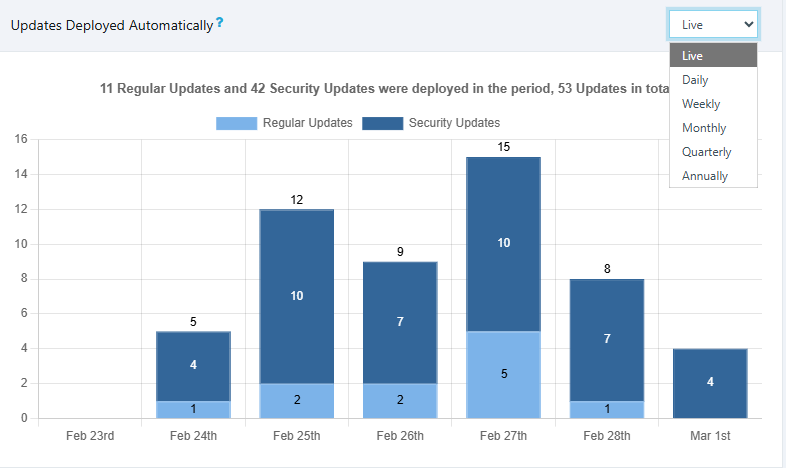

Updates Deployed Automatically
The Updates Deployed Automatically chart allows you to view past data, with a breakdown of the number of Security Updates and Regular Updates. You can also select the update periods from the drop-down list.

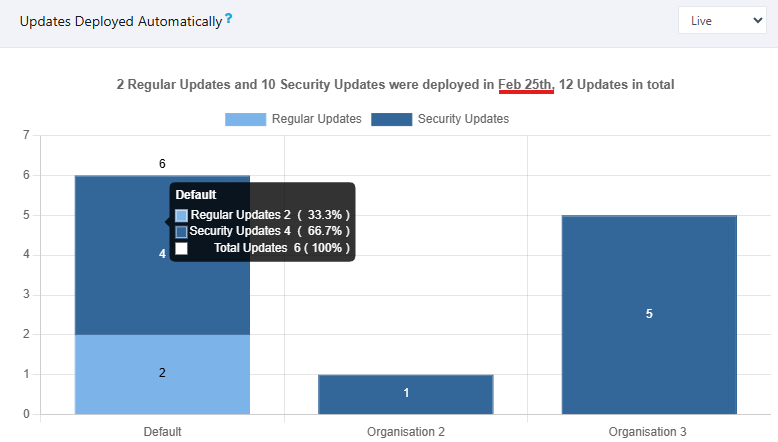

Clicking a bar in the chart displays detailed information about which updates were deployed and the sites to which they were applied. Click on a bar again to go back.

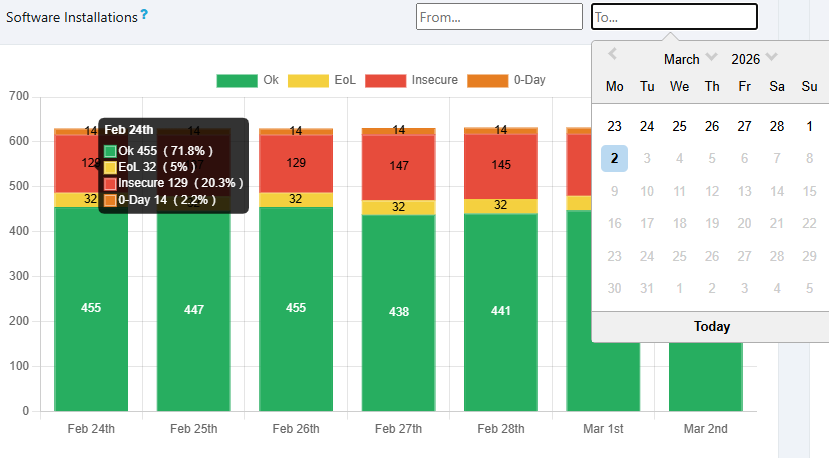

Software Installations
The Software Installations chart displays the Vulnerability Status Breakdown for the past week, with an option to view different periods by specifying a period in the From and To fields.

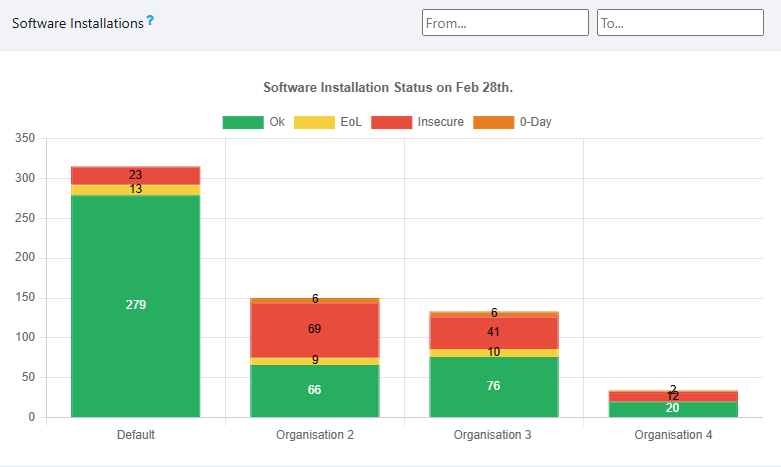

Clicking a bar opens a detailed view for the selected date, displaying the software installation status for each site.

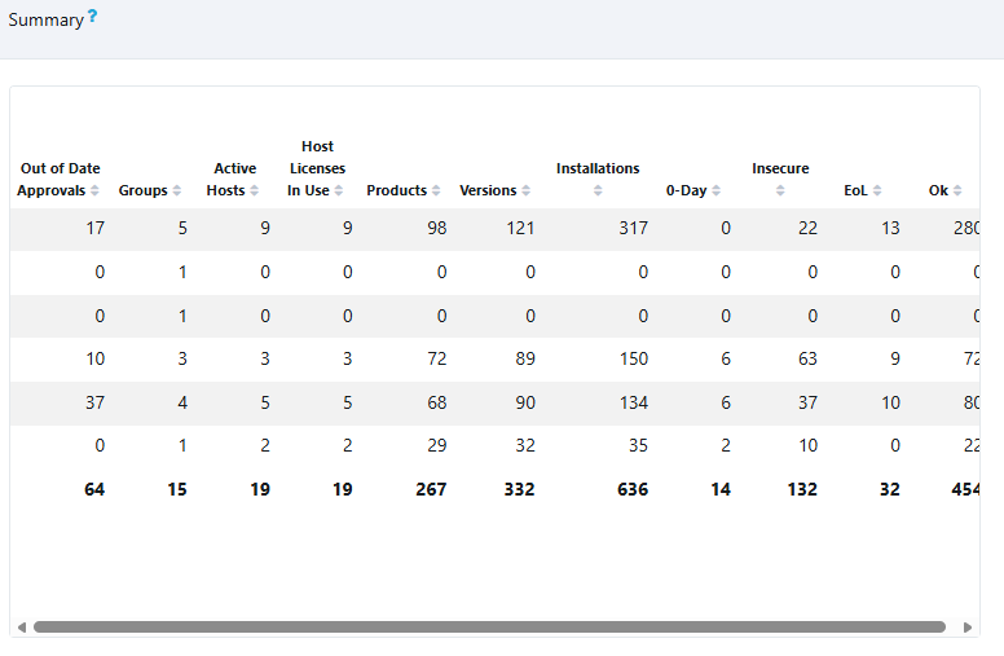

Summary
The Summary provides an overview of system status across sites.
| Out-of-date Approvals |
| |
| Groups | Number of Groups | |
| Active Hosts | Hosts that are active, i.e. not Dormant or Hidden. | |
| Host Licenses In Use | Hosts that have checked-in in the last 45 days are counted towards Host Licenses. This includes hosts marked as Dormant or Hidden, until 45 days have passed since their last check-in. | |
Products | Number of distinct software Products found by inspections. | |
| Products | Number of distinct software Products found by inspections. | |
| Versions | Number of distinct versions of software Products found by inspections. | |
Installations | Total number of installations of software Products found by inspections. | |
0-Day | Number of installations of software Products that have 0-Day vulnerabilities. | |
Insecure | Number of installations of software Products that are Insecure, not counting those that have 0-Day vulnerabilities. | |
EoL | Number of installations of software Products that are End-of-Life, not counting those that are Insecure and/or have 0-Day vulnerabilities. | |
| Ok | Number of installations of software Products that are neither Insecure nor End-of-Life. |
